S355CPS-G2 Ricambi

Trova e acquista qualsiasi ricambio per qualsiasi elettroutensile Evolution. Se non riesci a trovare il ricambio di cui hai bisogno, chiama il nostro cordiale team di assistenza clienti esperto con sede a Sheffield. Troveranno il ricambio e creeranno l’ordine per te, con consegna il giorno successivo per gli ordini effettuati prima delle 16:45 dal lunedì al venerdì. Offriamo anche un’opzione di consegna il sabato.

* Consegna gratuita, si applicano esclusioni geografiche. *Nota: gli sconti non possono essere applicati a offerte bundle, lame in abbonamento o articoli già in offerta. Non è possibile utilizzare più codici sconto/promozioni nello stesso ordine.

S355CPS-G2 Ricambi

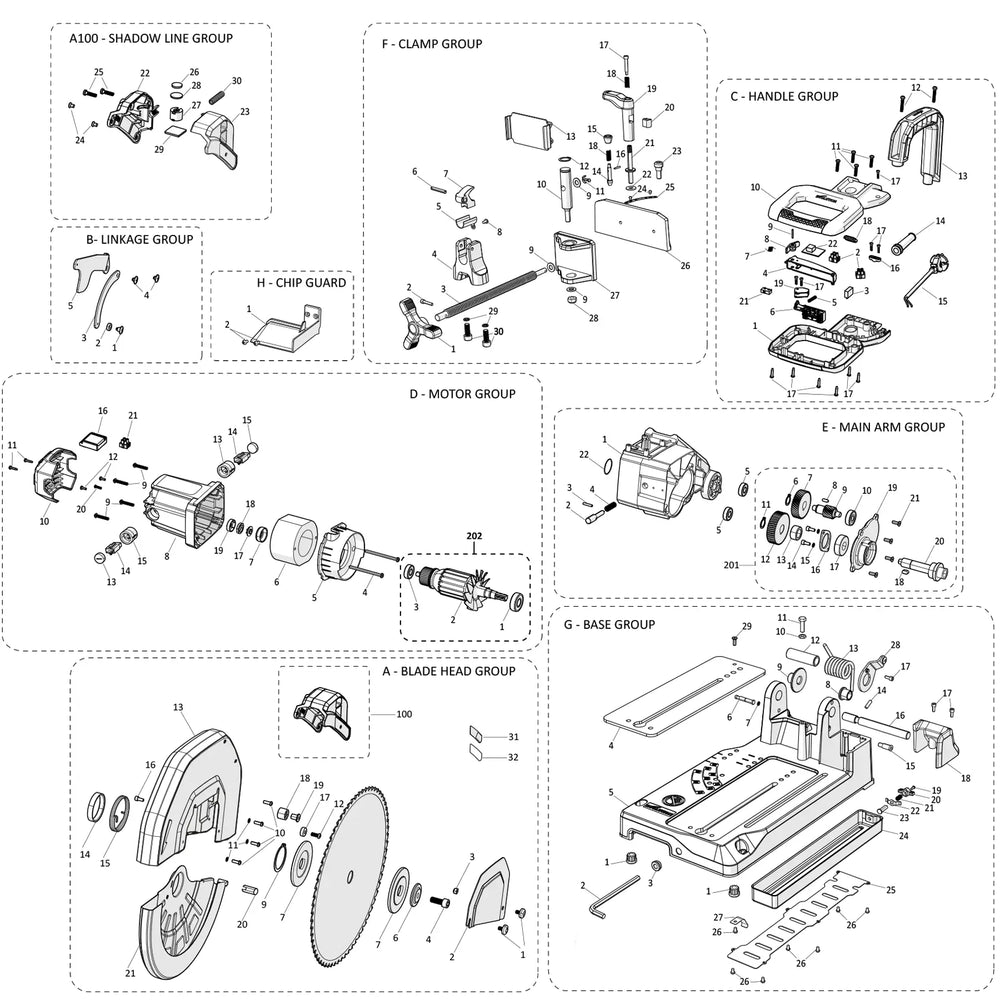

Trova il numero del ricambio sul diagramma e cerca il numero nell’elenco qui sotto.

A01 - ARBOUR COVER SCREW (# 083-0101)

Esaurito

A02 - ARBOUR COVER (# 083-0102)

1 rimasti in stock

A03 - LOCKING NUT M6 (# F-NSH--M6-ST-BO)

Esaurito

A04 - SOCKET CAP SCREW M10X25 (# F-SHCS-M10-25-ST-BO)

0,98 €

Esaurito

A06 - BLADE WASHER (# 083-0103)

Disponibile

A07* - FLANGE 89 (# 083-0104)

9 rimasti in stock

A09 - CIRCLIP _48 (# F-CCEXT-48-120-ST-BO)

Esaurito

A10 - POZI PAN HEAD SCREW M5X14 (# F-SPHPZ-M5-14-ST-BO)

Esaurito

A100* - LED HOUSING ASSEMBLY 355 (# 083-0311)

Esaurito

A11 - SPRING WASHER _5 (# F-SWA-M5-ST-BO)

3 rimasti in stock

A12 - POZI PAN HEAD SCREW M6X12 (# F-SPHPZ-M6-12-ST-BO)

Esaurito

A13* - BLADE HEAD ASSEMBLY 355 (# 083-0302)

Esaurito

A14* - MOVING GUARD SPRING SPACER 355 (# 083-0106)

Esaurito

A15 - MOVING GUARD SPRING (# 083-0107)

9 rimasti in stock

A16 - SOCKET CAP SCREW M5X12 (# F-SHCS-M5-12-ST-BO)

Esaurito

A17 - BALL BEARING 606 (# F-B-606-2Z)

4 rimasti in stock

A18 - BUMP STOP (# 083-0108)

Esaurito

A19 - BUMP STOP FIXING (# 083-0109)

Esaurito

A20 - SLIDER CAP (# 083-0110)

20 rimasti in stock

A21* - MOVING GUARD ASSEMBLY 355 (# 083-0111)

2 rimasti in stock

A31* - LED HOUSING PRODUCT PLAQUE S355CPS (# 083-0312)

Esaurito

A32* - M3 DOUBLE SIDED ADHESIVE TAPE 0.21MM (# 083-0313)

Esaurito

B01 - LINKAGE SHOULDER SCREW UPPER (# 083-0115)

Disponibile

B02 - SCREW SPACER (# 083-0116)

Disponibile

B03 - SMALL LINKAGE (# 083-0117)

Disponibile

B04 - LINKAGE SHOULDER SCREW MIDDLE (# 083-0118)

Disponibile

B05 - MAIN LINKAGE (# 083-0119)

Disponibile

C01* - MAIN HANDLE LOWER (# 083-0306)

Esaurito

C02 - TERMINAL BLOCK (# 083-0122)

Esaurito

C03* - CAPACITOR 220-240V (# 083-0123)

2 rimasti in stock

C04* - TRIGGER (# 084-0304)

Esaurito

C05 - MAIN TRIGGER SPRING (# 083-0126)

2 rimasti in stock

C06* - TRIGGER SWITCH (# 084-0307)

Esaurito

C07 - TRIGGER LOCK SPRING (# 083-0128)

14 rimasti in stock

C08 - LOCK TRIGGER (# 083-0129)

19 rimasti in stock

C09 - TRIGGER LOCK PIN (# 083-0130)

2 rimasti in stock

C10* - MAIN HANDLE UPPER (# 083-0307)

Esaurito

C11 - POZI PAN HEAD SCREW M5X30 W/ WASHER (# F-SPHPZ-M5-30-ST-BO)

Esaurito

C12 - POZI PAN HEAD SCREW M5X30 W/ WASHER (# F-SPHPZ-M5-30-ST-BO)

Esaurito

C13 - CARRY HANDLE (# 083-0132)

6 rimasti in stock

C14* - CABLE SLEEVE SMALL (# 083-0133)

5 rimasti in stock

C15* - CABLE UK 220-240V/R3M (# 084-0111)

Esaurito

C15* - CABLE EU 220-240V/R3M (# 084-0113)

Esaurito

C16 - CABLE STRAIN CLAMP (# 083-0140)

Esaurito

C17 - POZI PAN HEAD TAPPING SCREW ST4X16 (# F-TFPX-4-16-ST-BO)

1,98 €

Esaurito

C18* - RF INDUCTOR COIL (# 083-0195)

Esaurito

C19* - SWITCH BUTTON (# 084-0305)

Esaurito

C21* - LED SWITCH (# 084-0314)

Esaurito

C22* - LED PSU PCBA 230V AC (# 084-0315)

Esaurito

D01 - BALL BEARING 6202 YQ (# F-B-6202-2Z)

Esaurito

D03 - BALL BEARING 629 YQ (# F-B-629-2Z)

9 rimasti in stock

D04 - POZI PAN HEAD TAPPING SCREW ST5X80 (# F-TFPX-5-80-ST-BO)

Esaurito

D05 - AIR BAFFLE 65 (# 084-0125)

Esaurito

D06* - STATOR 65/220-240V 2200W (# 084-0319)

Esaurito

D07 - BALL BEARING CAP (# 053-0270)

Disponibile

D08 - MOTOR HOUSING (# 083-0308)

Esaurito

D09 - POZI PAN HEAD SCREW M5X30 W/ WASHER (# F-SPHPZ-M5-30-ST-BO)

Esaurito

D10 - END CAP BLUE (# 084-0303)

Esaurito

D11 - POZI PAN HEAD TAPPING SCREW ST4X16 (# F-TFPX-4-16-ST-BO)

1,98 €

Esaurito

D12 - POZI PAN HEAD SCREW M4X10 (# F-SPHPZ-M4-10-ST-BO)

1 rimasti in stock

D13 - BRUSH HOLDER (# 083-0152)

Disponibile

D14* - CARBON BRUSH 220-240V (# 083-0153)

18 rimasti in stock

D15 - BRUSH HOLDER COVER (# 083-0155)

6 rimasti in stock

D16* - PCB ASSEMBLY 230V (# 084-0322)

Esaurito

D17 - MAGNETIC RING HOLDER (# 053-0267)

12 rimasti in stock

D18 - MAGNETIC RING (# 053-0265)

10 rimasti in stock

D19 - MAGNETIC RING COVER (# 053-0266)

12 rimasti in stock

D20 - POZI PAN HEAD SCREW M4-14 (# F-SPHPZ-M4-14-ST-BO)

Esaurito

D202* - ARMATURE 55 ASSEMBLY 230V EU/UK/AUS (# 083-0051)

1 rimasti in stock

D21 - TERMINAL BLOCK 6 HOLES (# 053-0288)

Esaurito

E01 - ARM (# 083-0160)

9 rimasti in stock

E02 - ARBOUR LOCKING PIN (# 083-0161)

10 rimasti in stock

E03 - ROLLER PIN 4X20 (# F-SDL-4-20--ST-BO)

Esaurito

E04 - LOCKING PIN SPRING (# 083-0162)

10 rimasti in stock

E05 - BALL BEARING 6000 YQ (# F-B-6000-2Z)

Disponibile

E201 - GEARBOX ASSEMBLY (R355) (# 083-0055)

5 rimasti in stock

E22 - RUBBER BEARING RING (# 083-0196)

Esaurito

F01 - CLAMP BAR HANDLE BLUE (# 084-0132)

20 rimasti in stock

F02 - POZI PAN HEAD SCREW M5X25 (# F-SPHPZ-M5-25-ST-BO)

Esaurito

F03 - CLAMP BAR - 20MM/TRAPEZOID (# 084-0133)

10 rimasti in stock

F04 - CLAMP BAR SUPPORT - QR (# 084-0134)

20 rimasti in stock

F05 - CLAMP BAR WEAR PLATE (# 084-0135)

19 rimasti in stock

F06 - QUICK RELEASE VICE ROLLER PIN (# F-SDL-6-40-ST-BO)

Esaurito

F07 - QUICK RELEASE VICE (# 084-0137)

1 rimasti in stock

F08 - POZI PAN HEAD SCREW M5X8 (# F-SPHPZ-M5-8-ST-BO)

0,48 €

Esaurito

F09 - WASHER _10X_20X2 (# F-W-M10-ST-BO)

14 rimasti in stock

F10 - MOVING VICE SPINDLE - QR (# 084-0138)

Esaurito

F11 - SPLIT PIN 3X25 (# 083-0176)

Esaurito

F12 - CIRCLIP _22 (# F-CCEXT-22-120-ST-BO)

Esaurito

F13 - V-VICE ASSEMBLY - STEEL (# 084-0139)

2 rimasti in stock

F14 - 45¡ LOCKING PIN (# 084-0140)

Esaurito

F15 - 45¡ LOCKING KNOB (# 084-0141)

Esaurito

F16 - ROLLER PIN 3.2X18 (# F-SDL-3-18-ST-BO)

Esaurito

F17 - QUICK RELEASE LEVER SHAFT SCREW (# 084-0142)

Esaurito

F18 - LOCKING PIN SPRING (# 084-0143)

Esaurito

F19 - QUICK RELEASE LEVER BLUE (# 084-0144)

Esaurito

F20 - QUICK RELEASE LEVER SHAFT INSERT (# 084-0145)

Esaurito

F21 - QUICK RELEASE LEVER SHAFT (# 084-0146)

Esaurito

F22 - QUICK RELEASE LEVER SHAFT WASHER (# 084-0147)

Esaurito

F23 - SOCKET CAP SHOULDER SCREW (# 084-0148)

Esaurito

F24 - POZI PAN HEAD SCREW M4X5 (# F-SPHPZ-M4-5-ST-BO)

Esaurito

F25 - FENCE SCALE (# 084-0149)

Esaurito

F26 - FENCE - CAST (# 084-0150)

2 rimasti in stock

F27 - MOVING VICE JAW - CAST (# 084-0151)

3 rimasti in stock

F28 - LOCKING NUT M10 (# F-NNIF-M10-ST-BO)

14 rimasti in stock

F29 - SPRING WASHER _8 (# F-SWA-M8-ST-BO)

Esaurito

F30 - SOCKET CAP SCREW M8X25 (# F-SHCS-M8-25-ST-BO)

Disponibile

G01 - RUBBER FOOT 084 (# 084-0152)

Disponibile

G02 - ALLEN KEY S=8 (# F-HEXKEY-M6-ST-BO)

Disponibile

G03 - RUBBER GROMMET (# 083-0185)

Esaurito

G04 - BASE - WEAR PLATE (# 084-0154)

Esaurito

G05 - BASE (# 084-0153)

3 rimasti in stock

G06 - HEAD LOCK-DOWN PIN 084 (# 084-0155)

Esaurito

G07 - O RING 4.5X1.8 (# 083-0188)

Esaurito

G08 - ARM SHAFT SPACER SMALL (# 084-0156)

Esaurito

G09 - ARM SHAFT SPACER BIG (# 084-0157)

Esaurito

G10 - HEX NUT M8 (# F-NSF-M8-ST-BO)

8 rimasti in stock

G11 - HEX SCREW M8X25 (# F-HSS-M8-ST-BO)

Esaurito

G12 - MAIN TORSION SPRING SPACER (# 083-0190)

11 rimasti in stock

G13 - MAIN TORSION SPRING 084 (# 084-0158)

10 rimasti in stock

G14 - HEX SOCKET SET SCREW M6X20 (# F-SSCFP-M6-20-ST-BO)

Esaurito

G15 - STOP PIN (# 084-0159)

Esaurito

G16 - ARM PIVOT SHAFT 084 (# 084-0160)

Esaurito

G17 - SOCKET CAP SCREW M5X12 (# F-SHCS-M5-12-ST-BO)

Esaurito

G18 - CHIP DEFLECTOR - CAST (# 084-0161)

Esaurito

G19 - POZI PAN HEAD SCREW M4X10 (# F-SPHPZ-M4-10-ST-BO)

1 rimasti in stock

G20 - CHIP TRAY LOCKING KNOB (# 084-0162)

Esaurito

G21 - CHIP TRAY SPRING (# 084-0163)

Esaurito

G22 - LOCKING PLATE (# 084-0164)

Esaurito

G23 - CHIP TRAY LOCKING SCREW (# 084-0165)

Esaurito

G24 - CHIP TRAY ASSEMBLY (# 084-0166)

Esaurito

G25 - CHIP TRAY PLATE (# 084-0167)

Esaurito

G26 - POZI PAN HEAD SCREW M5X8 (# F-SPHPZ-M5-8-ST-BO)

0,48 €

Esaurito

G27 - CHIP TRAY SPRING PLATE (# 084-0168)

Esaurito

G28 - MAIN LINKAGE BRACKET (# 084-0169)

6 rimasti in stock

G29 - SOCKET CAP COUNTERSUNK SCREW M5X15 (# F-SCHPZ-M5-15-ST-BO)

Esaurito

H01 - CHIP GUARD (# 084-0170)

Esaurito

H02 - POZI PAN HEAD SCREW M5X8 (# F-SPHPZ-M5-8-ST-BO)

0,48 €

Esaurito
